Differential case automatic balancing machine is used for single-plane automatic unbalance correction of disc-shaped workpieces, it adopts the new technology of Shanghai Jianping dynamic balancing machine. The differential cases are automated done from unbalance measurement, angle positioning, milling weight removal and retest.

The differential is a relatively unknown car component, its name is very strange, differential? Why is it called a differential? How did the differential come from? Where it is used in the car? Here I will lead you to understand the differential and the differential case balancing machine.

Introduction to the differential case

The power of the automobile engine is transmitted to the drive axle through the clutch, transmission, and drive shaft, and then distributed to the half-shaft drive wheels on the left and right sides. In this power transmission path, the drive axle is the latter assembly, and its main components are the reducer and differential. The function of the reducer is to decelerate and increase the torque. This function is completed by the meshing between the gears, which is easier to understand. The differential is more difficult to understand, what is a differential, and why is it "differential"

The ordinary differential of an automobile is composed of planetary gears, planetary carrier (differential case), half-shaft gears and other parts, which can make the left and right (or front and rear) driving wheels rotate at different speeds.

When a car turns, the turning radius of the inner wheel and the outer wheel are different, and the turning radius of the outer wheel is greater than the turning radius of the inner wheel, which requires that the speed of the outer wheel be higher than the speed of the inner wheel when turning. The role of the differential is to meet the requirements of the different speeds of the wheels on both sides of the car when turning! This role is the basic role of the differential. As for the anti-skid differential, LSD differential, Torson differential, etc., they are designed to improve the driving performance, handling performance and safety performance of the car.

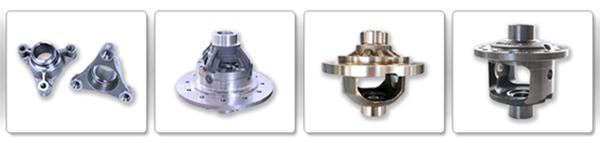

The shape of the differential case is determined according to different car models and the structure of the differential, including the left and right cover closed type, flower basket type and so on. The differential case is the skeleton of differential gears, half-shaft gears, and cross shafts. The differential case combines them together, and its exterior is connected with a big eight-shaped gear or an outer gear ring. Its dynamic unbalance measurement is also not to be underestimated.

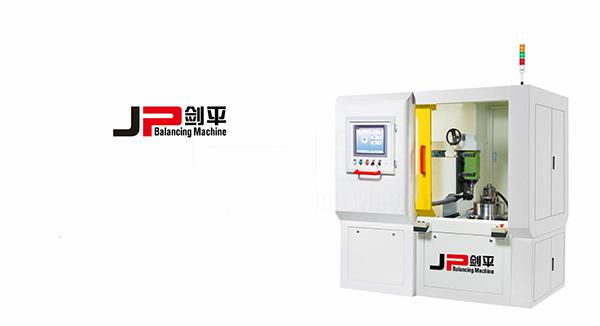

Differential case automatic balancing machine

The differential case automatic balancing machine is used for single-plane automatic unbalance correction of disc-shaped workpieces, it adopts the new technology of Shanghai Jianping dynamic balancing machine. The differential cases are automated done from unbalance measurement, angle positioning, milling weight removal and retest. It has the characteristics of fast speed and high accuracy, which is suitable for mass production of differential case dynamic balancing.

1.Manual loading & unloading

2.15 inch touch screen

3.Complete unbalance measurement software technology

4.Automatically mill, remove weight and correct the workpiece.

5.Rigid structure design, high service life.
About JP Balancing Machine
Shanghai Jianping Dynamic Balancing Machine Manufacturing Co., Ltd. is a high-tech enterprise engaged in the research, development, design and manufacturing of dynamic balancing machines, focusing on product quality and the update of production equipment performance. The company focuses on the research and development technology of fully automatic balancing machines, and has obtained multiple invention patent certificates and computer software copyright certificates. Welcome to Shanghai Jianping to visit and negotiate.

Differential Case Dynamic Balancing Machine
