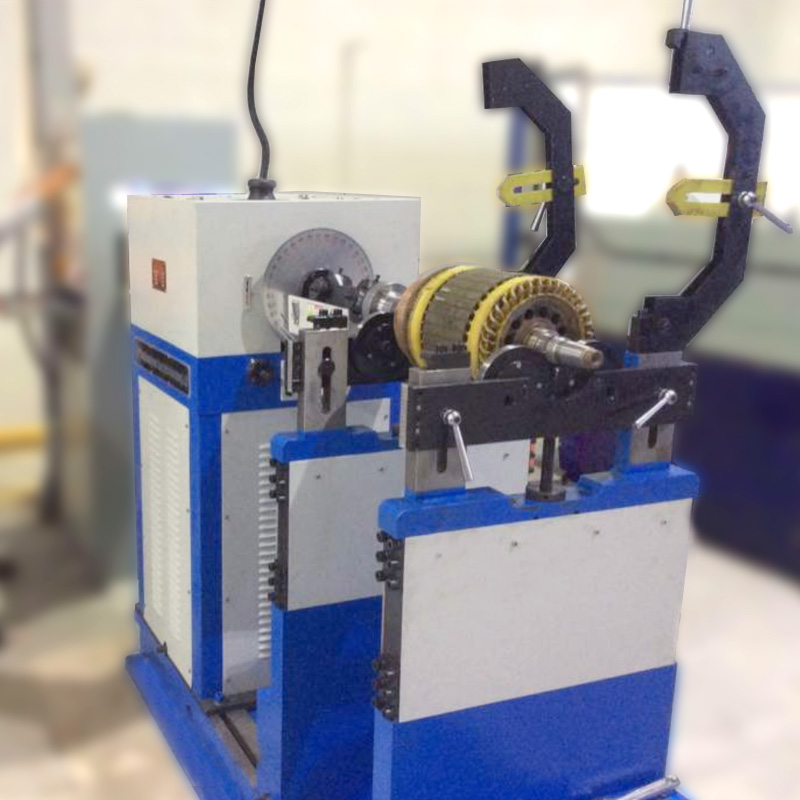

1000/2000kg Universal Joint Drive Balancing Machines

  • Special designed brackets can effectively transmit mechanical force
  • The durable and reliable sensor possesses high sensitivity
  • The permanent calibration brings high accuracy
  • Driven by universal coupling,transmit the power steadily
  • Applicable to rotors which can't be driven by belt or need large power
  • Advanced electrical measuring system and friendly man-machine interface
  • Technical Data
  • Gallery
  • Download
  • Video
  • Info Form
  • Applicable to medium workpieces
    Technical data at a glance PHW-1000H PHW-2000H
    Mass Scope of Workpiece(kg) 1000 2000
    Max Diameter of Workpiece(mm) Φ1600 Φ1800
    Distance Between Two Support Bearings(mm) Min 60 Min 60
    Journal Diameter Scope of Workpiece(mm) Φ25~1203) Φ25~1203)
    Max Distance between Driving Flange and Right Bearing Support (mm) 1600 1900
    Rotational Speed of the Main Axis(r/min) 600,10954) 485,8184)
    Motor Power (kw) 41) 7.51)
    Torque of Universal Joint Shaft(N·m) 250 300
    Length of Bed (mm) 2500 3000
    Min Achievable Residual Unbalance Amount(emar) ≤0.5g· mm/kg ≤0.5g· mm/kg



    1) Frequency conversion
    2) Can add to 75-180
    3)Can add to 120~240
    4)    Stepless speed regulation
