Widely used in balancing turbocharger, turbocharger impellers,turbocharger compressors ,turbocharger turbines etc .
Auto-positioning bed,17inch LCD screen,large tool carriage structure

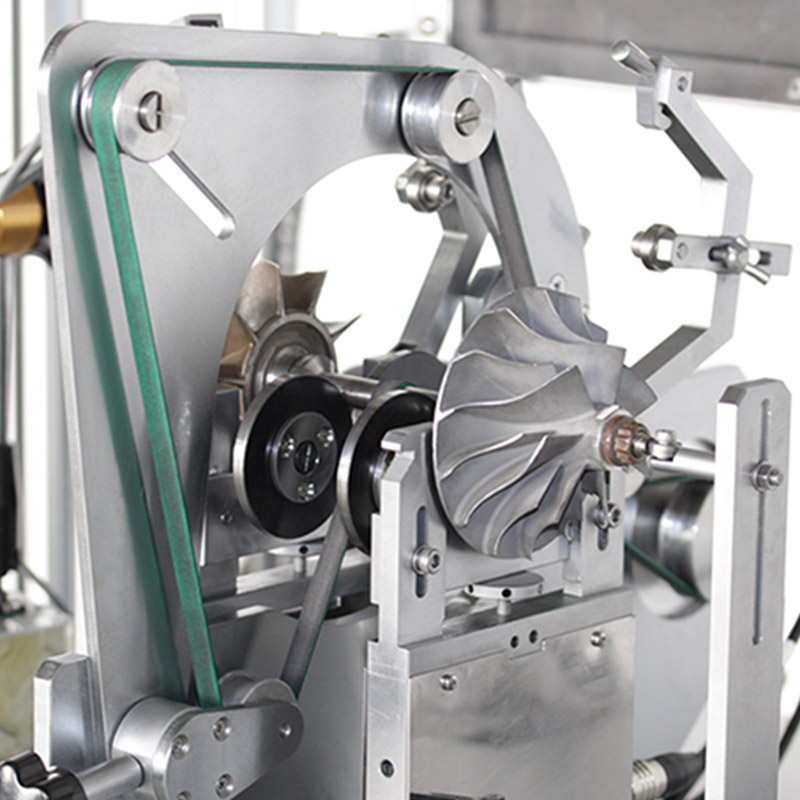

Dedicated bracket,driven by Nylon belt ,variable speed motor 230W

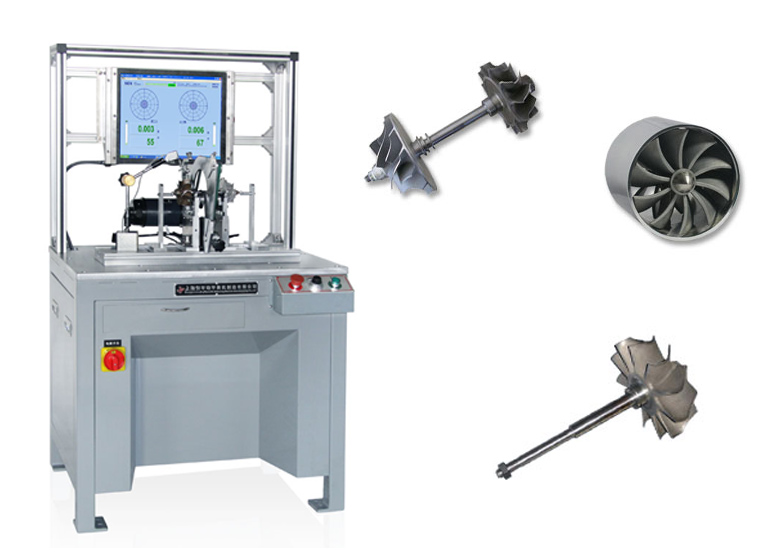

Balancing Machine Specially for Turbocharger

Technical data at a glance	PHZY-1.6	PHZY-5	PHZY-16
Max Mass of Workpiece (kg)	1.6	5	16
Max Diameter of Workpiece (mm)	Φ300	Φ300	Φ300
Distance between Two Support Bearings (mm)	60~400	60~400	60~400
Journal Diameter Scope of Workpiece (mm)	Φ5~40	Φ5~40	Φ5~40
Diameter Scope of Driving Belt (mm)	Φ15~150	Φ15~150	Φ15~150
Rotational Speed when the Diameter of Driving Belt is100mm(r/min)	1470¹⁾	1470¹⁾	1470¹⁾
Motor Power (kw)	0.23DC	0.23DC	0.23DC
Min Achievable Residual Unbalance Amount (emar)	≤0.15g· mm/kg	≤0.15g· mm/kg	≤0.15g· mm/kg

1)Stepless speed regulation
