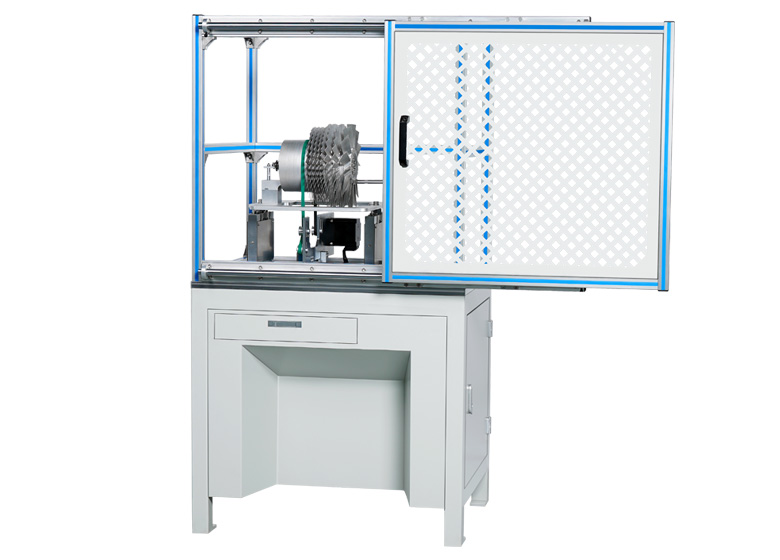

Turbo Molecular Pump Balancing Machines

  • Convenient workpiece loading & unloading
  • Soft-bearing bracket system designed by Jianping
  • Modular design, applied to the balance of molecular pump impeller
  • Suitable for the dynamic balance detection of turbo molecular pump impeller
  • Technical Data
  • Gallery
  • Download
  • Video
  • Info Form
  • Technical data at a glance PRQT-16 PRQT-30 PRQT-50
    Max Mass of Workpiece(kg) 16 130 50
    Max Diameter of Workpiece (mm) Φ300 Φ350 Φ550
    Distance Between Two Support Bearings (mm) 350 350 650
    Diameter Scope of Driving Belt (mm) 100-200 100-300 100-350
    Rotational Speed when the Diameter of Driving Belt is 100mm (r/min)  18001) 18001) 18001)
    Motor Power (kw) 0.45 0.55 0.75
    Min Achievable Residual Unbalance Amount (emar) ≤0.15g· mm/kg ≤0.15g· mm/kg ≤0.15g· mm/kg
    1) Stepless speed regulation
