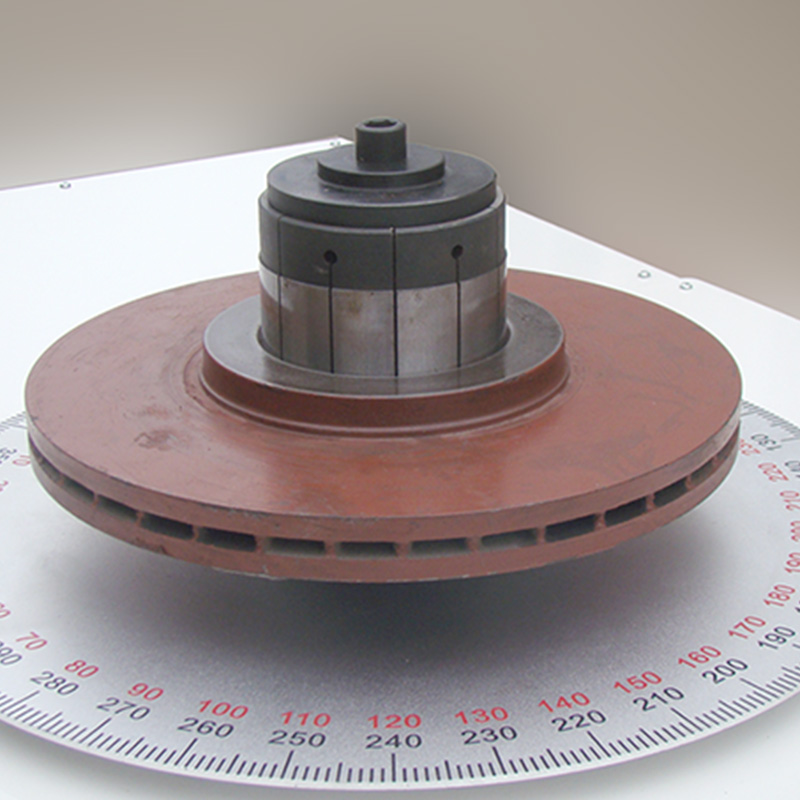

This machine is mainly used for brake discs,brake drums,saws,water pump impellers,grinding wheels,pulleys and other disc-shaped rotors dynamic balancing test.
Because of using pneumatic inflate clamps,so has a very high accuracy at the same time,It also has a quick-release clamping function,improve work efficiency greatly

Technical data at a glance	PHLD-35Q
Max Weight of Workpiece(kg)	35 (with clamp)
Max Diameter of Workpieces(mm)	Φ400
Max Height of Workpiece (mm)	200
Spindle Speed (r/min)	~800
Motor Power (kw)	1.5 frequency conversion
Min Achievable Residual Unbalance Amount	2g.mm/kg
Unbalance Reduction Ratio	≥90
