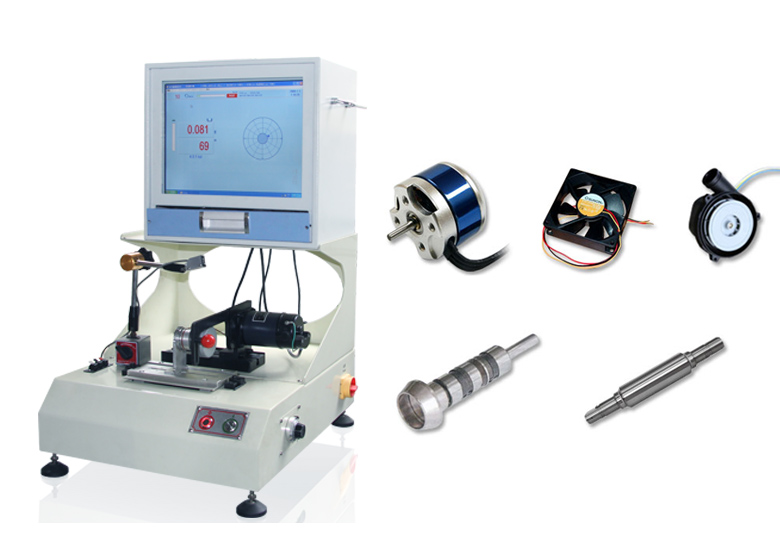

PRQ Series soft bearing balancing machines are specially designed for high precision dynamic balancing test of micro-motor rotors
The system adopts DC variable speed drive device,realize stepless speed regulation
Bracket system uses soft bearing structure,high sensitive sensor,which achieve higher measurement accuracy.
Equip with advanced measuring system.Friendly man-machine interface,easy operation.It's highly praised by majority of end-users

PRZQ-0.3A/1.1 Double Driven Balancing Machine

Technical data at a glance	PRZQ-0.3	PRZQ-1.1
Max Mass of Workpiece(kg)	0.3	1.1
Max Diameter of Workpiece (mm)	Ø40	Ø80
Distance Between Two Support Bearings (mm)	7-44	15-110
Journal Diameter Scope of Workpiece (mm)	1.5-10	2-12
Maximum Diameter of Driving Belt (mm)	40	Ø70
Motor Power (kw)	0.05DC	0.05DC
Min Achievable Residual Unbalance Amount (emar)	≤1g·mm/Kg	≤1g·mm/Kg
Power Supply	Single-phase 220V 50HZ	Single-phase 220V 50HZ

1)Stepless speed regulation
