Specially designed brackets transmit mechanical force with high rigidity
Durable and reliable sensor possesses high sensitivity
Permanent calibration brings high accuracy with a permission of large initial unbalance amount
Advanced electrical measuring system and friendly man-machine interface

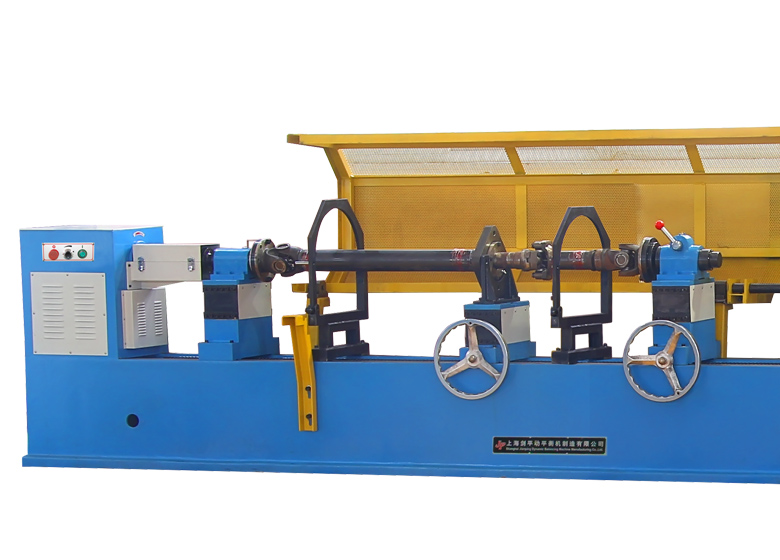

PHCW Series drive shaft balancing machine is the special equipment used to check all kinds of drive shaft balance.

Technical data at a glance	PHCW-100T
Max Mass of Workpiece (kg)	100
Effective length of workpiece(mm)	4500
Max Diameter of Workpiece(mm)	Φ130
Shaft tube diameter of workpiece(mm)	Ø120
Balancing speed(mm)	1600~3200
Motor Power(KW)	2.2Frequency conversion
Universal joint torque(N.M)	60
Min Achievable Residual Unbalance Amount(e mar )	≤5g
Once reduced rate (%)	≥85
