Fully considering the balance precision of the whole components.the auatomatic series balancers can effectively eliminate the vibration caused by the bearing parts and other assembly errors
Specially designed hard bearing bracket can expand the measuring range and reduce the failure rate
Customized special fixtures,due to the use of fasr chuck fasrening,can be perfectly applied to the assembly dynamic balance
Rapid detection and measuring system,with high precision automatic de-weight mechanism,can be highly done products testing and de-weight efficiently

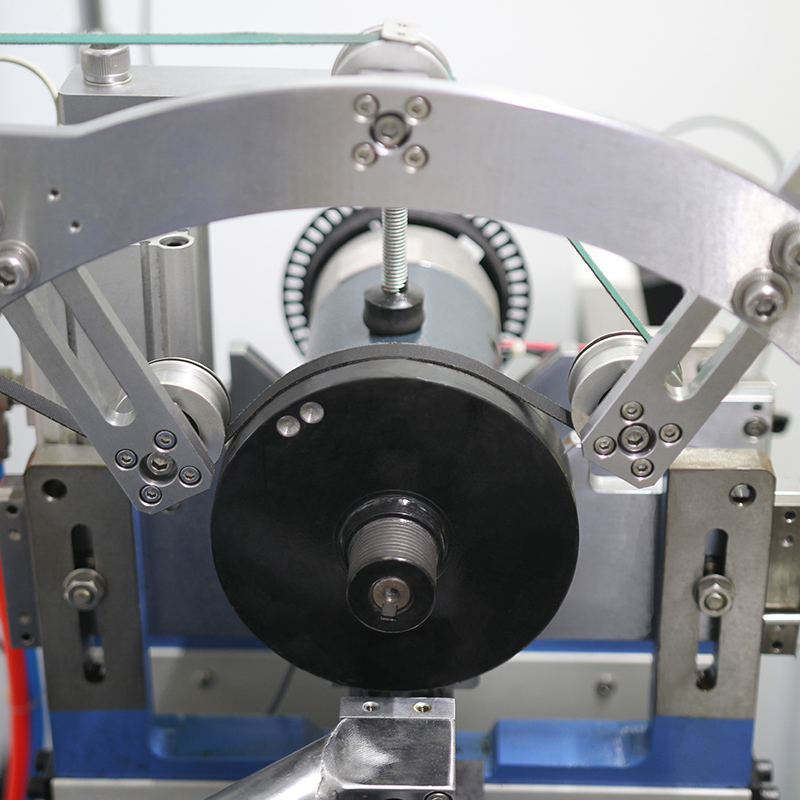

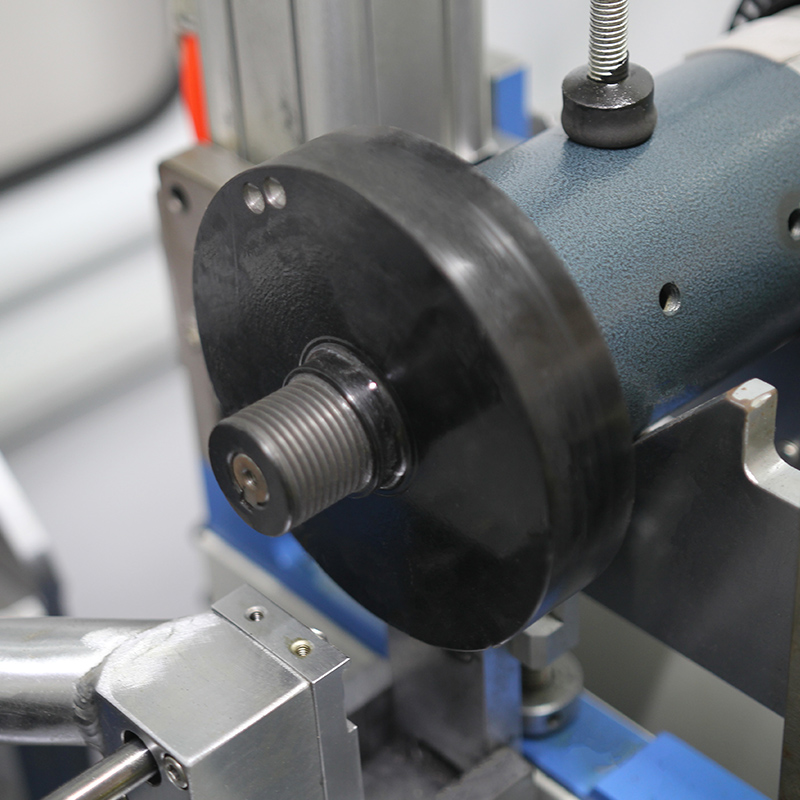

Motor Assembly Automatic Balancing Machines

Parameter
Weight of Rotor(kg)	5-50
Diameter of Support Shaft (mm)	80-120
Milling Cutter Diameter (mm)	100-150
Milling Cutter Thickness (mm)	25-40
Min Achievable Residual Unbalance Amount (emar)	＜5g· mm/kg
Unbalance Reduction Rate by One Time	＞90%
Special rotor need to be confirmed with engineer Processing period:35s （it will change accoring to weight.material.dimension）
Configuration
Balancing Machine and Measuring System	Jp Balancer
Drilling Engaging Motor	0.75kw Panasonic Servo Motor
Drilling Spindle Motor	0.75kw
Cylinder	SMC
Drilling Track	ShangYin
Main Driven Motor	Taiwan Hankun
Vacuum Cleaner	Suzhou Deico
