What is the flange, where is the main application

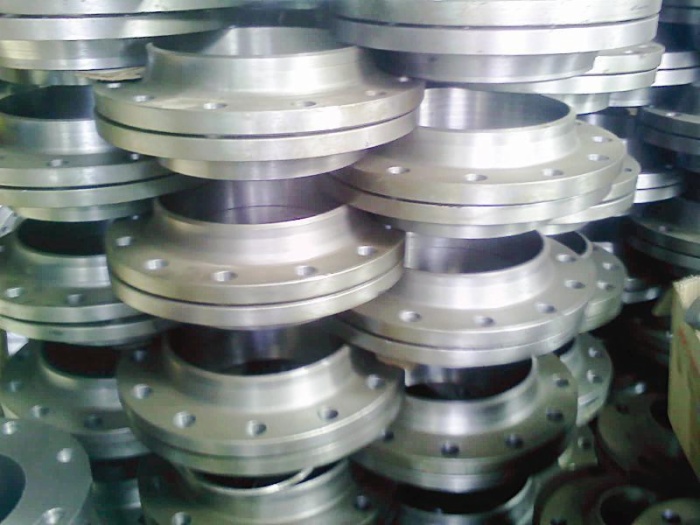

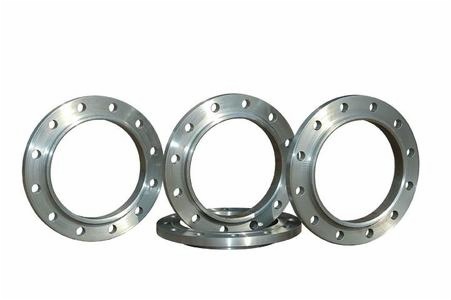

Flange is an important part of the modern machinery industry, it is mainly used for pipeline interconnection, usually refers to a similar disc around the metal body to open a few fixed holes for connecting other objects. Flange joints are widely used in engineering design, involving a very wide range of parts. It is designed on pipe, pipe valves essential components, but also equipment, equipment parts. In addition, other professional such as industrial furnace, thermal, water supply and drainage, heating and ventilation, automatic control, also often use flange joints.

Flange Connection From

Flange connection, a pair of flanges, a gasket and a plurality of bolts and nuts. Flange connection is a detachable connection.

Principle: the gasket placed between the two flange sealing surface, tighten the nut, the gasket on the surface of the specific pressure to a certain value after the deformation, and fill the sealing surface uneven, so that the connection is tightly leaked.

Performance: good strength and sealing, simple structure, low cost, can be repeated demolition, the application of a wider.

Failure modes: mainly spill of the process control within the scope and environmentally acceptable.

Integral flanges refer to pumps, valves, machines and other mechanical equipment and piping connected to the import and export flange, and these pipes and equipment are usually integrated as part of the equipment.

In the case of bolt diameter and bolt diameter composite standard, it is qualified to use the other tools to freely penetrate the bolt into the bolt hole. Balanced choice of rotor balance is a hub problem. The choice of such a principle: as long as the content of the need to balance the use of the rotor under the conditions of balance, do static balance, do not do dynamic balance, can do dynamic balance, do not do static and dynamic balance. The reason is very simple, static balance is easier to do than the balance, power, effort, saving.

Automatic Balancing Machine to improve the quality of flange

Flanges balancing machine correction also widely used in automobile clutch pressure plate, flywheel, pulley, water pump impeller. The use of JP latest technology, the work piece from the balance measurement, angle positioning, drilling to heavy and re-test, all the implementation of automation; with simple operation, easy to use, high precision; for small and medium-volume production.
In order to have a more balance economic benefits, JP has now taken this step, the advantages of vertical balance machines in a near-perfect way to present the public field of vision. Even the small batch of automated balancing process, is also very beneficial.
The problem is the balance of any machine, parts cannot be ignored. Maintain a high degree of product balance can not only improve the user experience, but also to ensure product life, improve product quality.

Automatic balancing machine six product features, can better help manufacturers to create a more high-quality flange

1, manual loading.
2, 15-inch touch screen.
3, advanced balance machine measurement software.
4, automatic measurement system, capable of drilling automatically corrected, automatically retest the product, to improve the efficiency of balance.
5, the work piece can be two or more times to re-correction.
6, tool steel structure design, can achieve very high service life.

What is flange balancing machine, balance principle?
