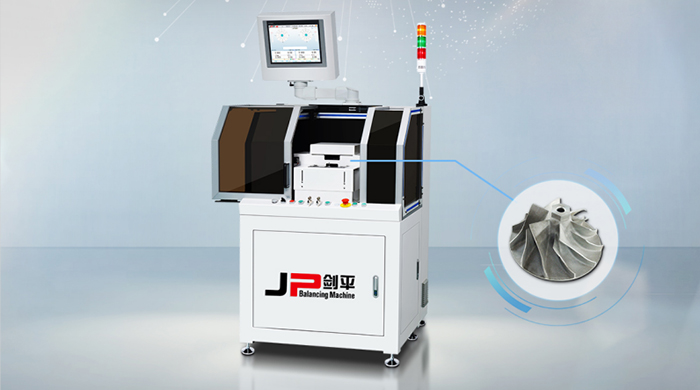

Turbocharger rotor high-speed balancing machine

With the continuous development of on-board turbocharging technology, the current working speed of turbocharger rotor can reach 60000r/min to 240000r/min. Turbocharger rotor is the core parts of the turbocharger, during high-speed rotation, its unbalance will cause greater vibration and noise, which directly leads to the wear of floating bearings, thrust bearings and even seal parts, and thereby reduces the service life of the turbocharger, which will also bury hidden dangers for safe driving.

To this end, Jianping specially developed turbocharger rotor high-speed dynamic balancing machine, to help improve the service life of turbocharger effectively!

High-speed dynamic balancing technology is a kind of detection means that through the unbalance measuring and correction of turbocharger rotor, the vibration value and wear of turbocharger rotor in high-speed rotation can be reduced. At present, it is necessary to fix the rotor when detecting the turbocharger rotor produced online. The tooling used for bearing the rotor in the existing technology is lack of applicability, when detecting the rotor of different models and specifications, the tooling needs to be removed as a whole, and replaced with another matching tooling, and then the tooling needs to be re-installed. The operation is very complicated, time-consuming and laborious, which makes the detection efficiency low.

Nowadays, efficient dynamic unbalance detection can be realized just by using Jianping turbocharger dynamic balancing test machine. This turbocharger dynamic balancing equipment has strong applicability, the disassembly and installation is very fast, which improves the assembly speed and efficiency, and thereby improves the speed of dynamic unbalance detection.

Application

It is suitable for the unbalance detection of all kinds of automobile turbocharger rotors.

Product advantages

01. High precision air-floating spindle

02. High precision and high speed measurement applied to the workpiece

03. Soft-bearing measuring brackets, high measuring accuracy

04. Friendly HMI, easy to operate

Product details

Jianping staff will actively respond to the call of the country, make the national industry bigger and stronger, continue to consolidate and enhance our company’s technical advantages in the same industry at home and abroad, comprehensively enhance our company’s comprehensive competitiveness and brand influence, and make contributions to the development of balancing equipment manufacturing industry in China.
