In order to better improve the balance and stability of the external rotor fan wheel, to reduce the impact of the noise generated by the external rotor fan wheel on life and production, and to make the structure of the external rotor fan wheel more compact, after studying the related technology, Shanghai Jianping successfully developed the external rotor fan wheel dynamic balancing machine to meet the customer's balancing requirements.

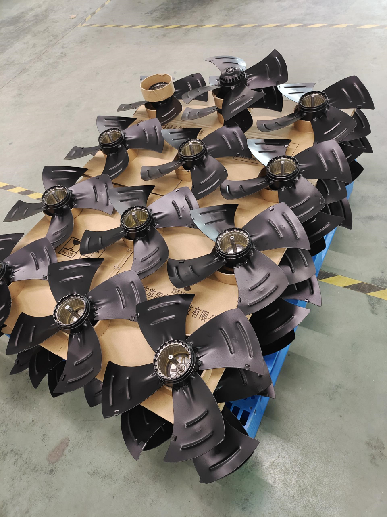

What is an external rotor fan wheel?
In electric power and energy science, the fan wheel is the part of the wind turbine
that converts wind energy into mechanical energy; while the external rotor fan is the opposite structure of the traditional motor. The stator is in the middle of the motor, and the rotor is outside. The external rotor fan adopts the advanced structure that the external rotor motor directly drives the impeller and reasonable pneumatic design, high efficiency, low noise, light weight, more compact structure, and more convenient installation and maintenance.
The external rotor fan wheel dynamic balancing machine is to provide balancing
verification for the external rotor fan wheel with such an important role.
Why does it require dynamic balancing?
With so many rotating workpieces nowadays, everyone can't help but ask why should they be dynamically balanced. If we don't do dynamic balancing, will the workpieces be useless? Take the external rotor fan wheel as an example, the external rotor fan wheel balanced by the external rotor fan wheel dynamic balancer has many advantages compared with the general external rotor fan wheel.
1. The quality of the external rotor fan wheel has been improved, and it can obtain a longer service life;
2. The noise generated by the external rotor fan wheel during operation can be greatly reduced, and the adverse effects of its noise can be eliminated;
3. Reduce the vibration of the external rotor fan wheel in the working process and improve the service life of the bearing.
After the correction of the external rotor fan wheel dynamic balancing machine, the overall quality of the fan wheel has a qualitative leap, and the operation is simple and fast.
Function introduction of external rotor fan wheel dynamic balancing machine

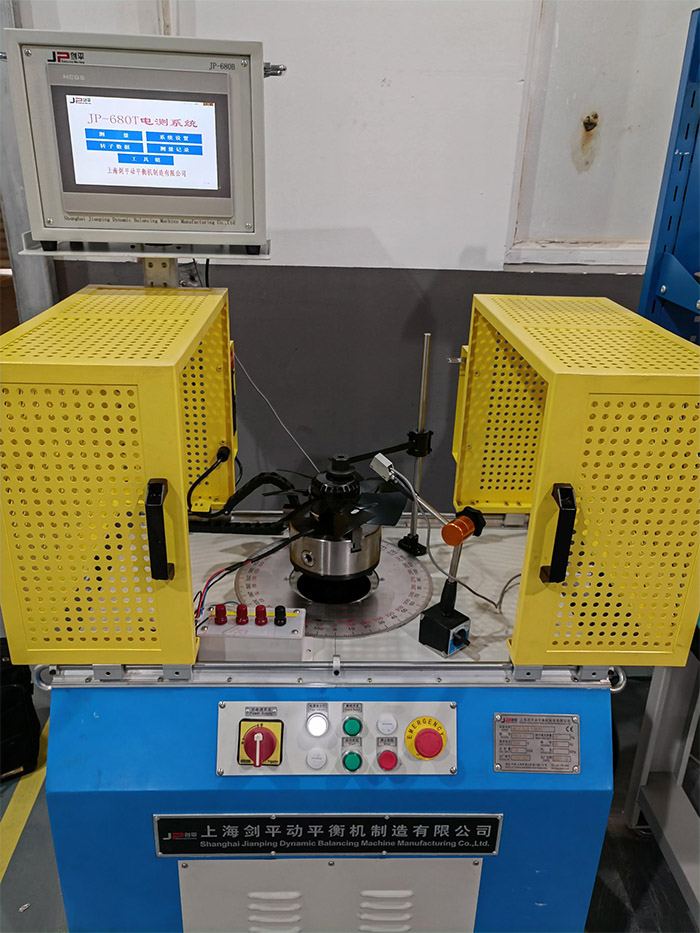

Hard-bearing double-plane vertical balancing machine with pneumatic fixture, mainly suitable for vertical single/double-plane dynamic unbalance test of external rotor motors and external rotor fans. The newly designed precision spindle, with customized pneumatic quick-installation fixtures, is easy to operate and has high measurement accuracy, which is especially suitable for mass production of workpieces.
Features:
Single/double-plane dynamic unbalance test
Hard-bearing balancing bracket system
Fixture compensation function

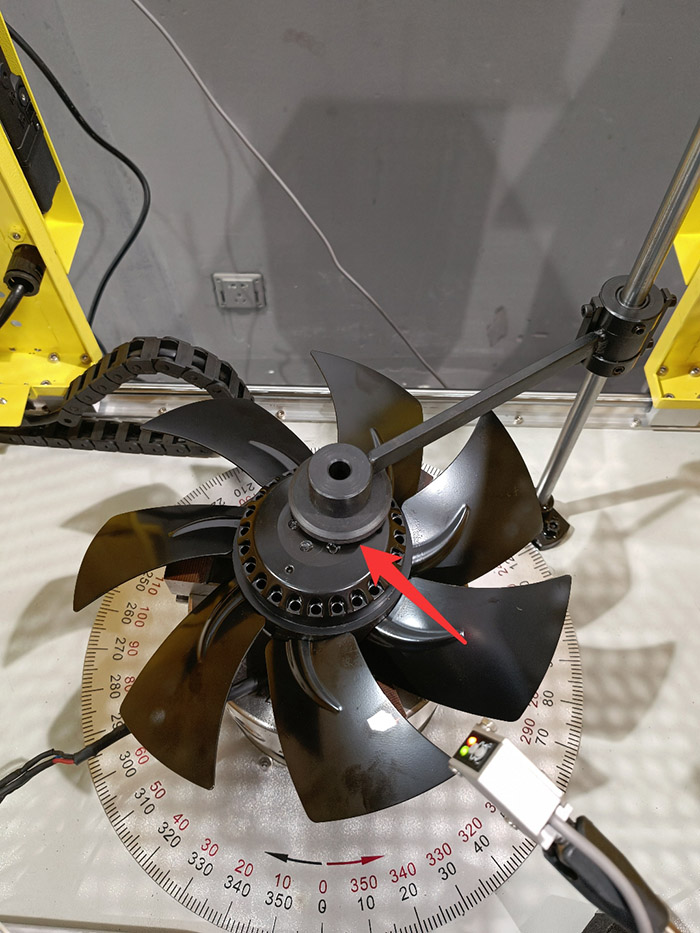

Pneumatic quick-installation fixture

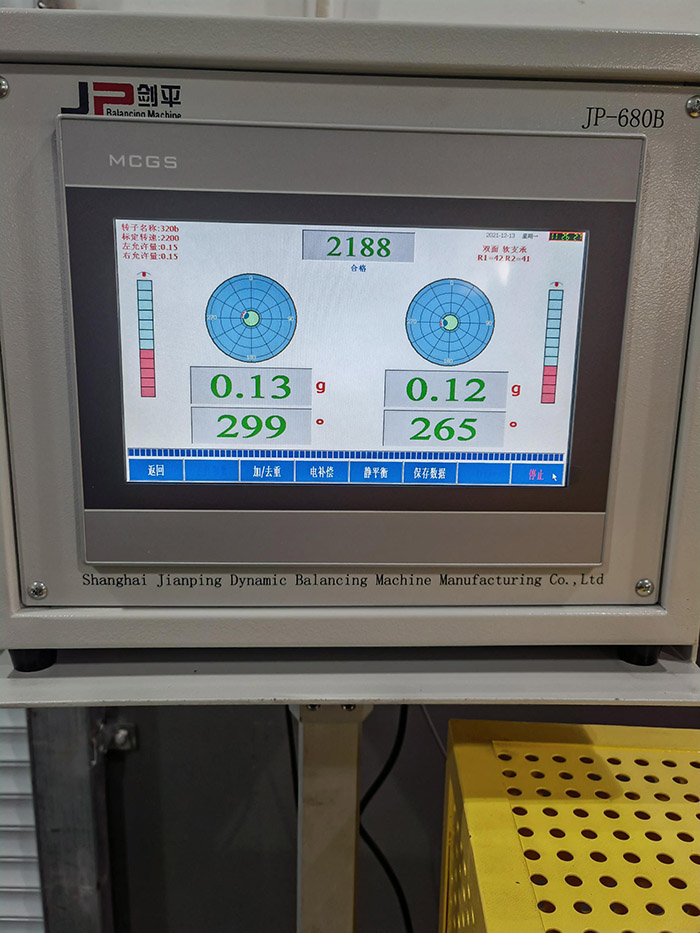

Kunluntongtai 12-inch HMI
Win CE Operating System
100 rotor parameters
1 million historical measurement records
Bilingual in Chinese and English
Support USB data export
Although the external rotor fan wheel dynamic balancing machine can indeed help the external rotor fan wheel to improve the life and quality, the rotating workpiece will also be slightly deformed due to various thermal and centrifugal forces during work, so it requires the user to use it properly to ensure its better service
The external rotor fan wheel dynamic balancing machine produced by Shanghai Jianping hopes to help more external rotor fan wheel manufacturers to improve the quality of their products!
